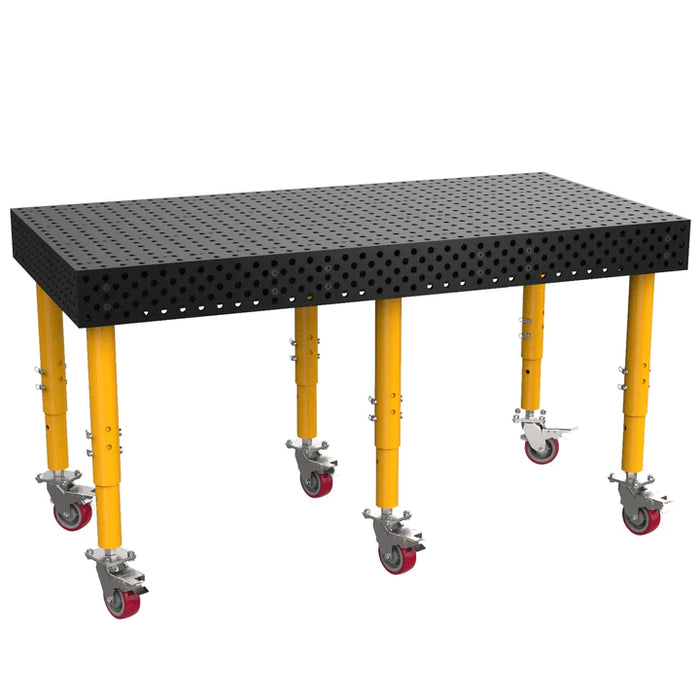

The BuildPro welding tables, particularly the Alpha series, offer a range of features and specifications that make them highly versatile and suitable for precision welding and fabrication work. Here's a concise description of their key attributes:
Reversible Self-Locating Top & Side Plates: All BuildPro welding tables are equipped with precision-machined self-locating steel plates. What sets them apart is their reversible top plates. This unique feature allows users to easily remove and flip the plates by 180 degrees, providing a fresh working surface if the top side has sustained damage or wear over time.
Table Accuracy:
-
Table Flatness: These tables maintain an exceptional level of flatness, with a tolerance of ±0.005 inches per 24 inches by 24 inches, ensuring a consistently level work surface.
-
Hole Spacing: The tables have uniformly spaced holes at 2.000 inches apart, with a precision tolerance of ±0.001 inches.
-
Hole Diameter: Each hole on the table boasts a diameter of 0.625 inches, with a tight tolerance of +.002 inches/- .000 inches.
-
Plate Thickness: The plates themselves have a thickness of 0.47 inches, with a tolerance of ±0.004 inches.
Tabletop Side Height: The new five-sided tables feature a 5-1/2 inch side plate combined with the top plate. This design results in a total side height of 6 inches, providing a stable and convenient working surface for welding and fabrication tasks.
Extended Borehole Pattern: Alpha table side plates come with an extended 5 borehole pattern. This pattern enhances precision and adjustability, making it easier to secure and clamp workpieces in various welding setups.
Nitrided (Heat-Treated) Tabletop: To ensure durability and resistance to wear and corrosion, all top and side plates of Alpha tables are constructed from heat-treated steel. The top plates are hardened to a high Rockwell hardness (HRC) of 58-62, while the side plates are slightly softer, with a hardness of 50-55 HRC. Additionally, a nitrite coating is applied to the plates, providing a case depth ranging from .0004 to .0008 inches.
Plate Mounting Detail for Side Plates: The side plates are designed with a self-locating bushing system. This system simplifies the process of mounting and aligning the side plates, further enhancing the precision and usability of the table.
