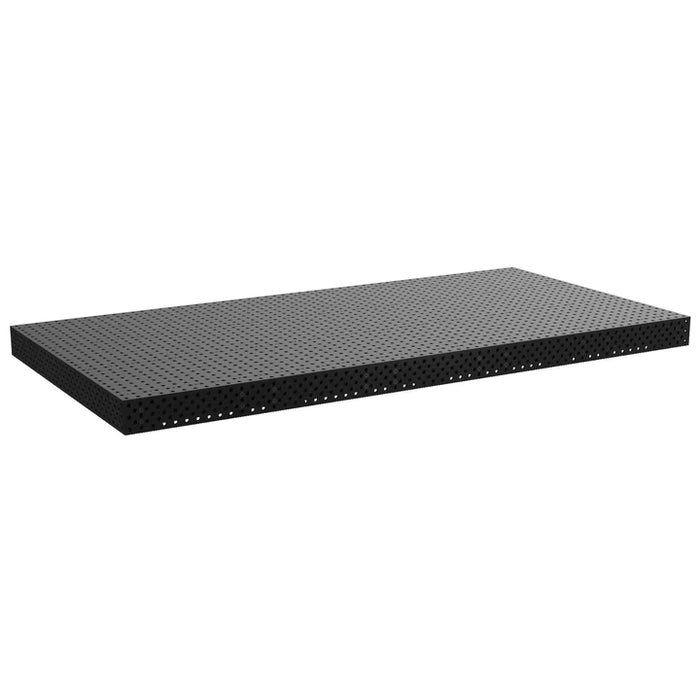

Buildpro 10' x 5' Alpha 5/8 Five-Face Welding Table

Reversible Self-Locating Top & Side Plates: These tables come with precision-machined self-locating steel plates. The top plates are reversible, allowing you to remove and flip them 180 degrees to expose a new working surface if the top side becomes damaged or worn.

Table Accuracy:

• Table flatness: ±0.005 per 24″ x 24″
• Hole spacing: 2.000″ ±0.001
• Hole diameter: 0.625″ +.002/-.000
• Plate thickness: 0.47″ ±0.004

Tabletop Side Height: The new five-sided tables feature a 5-1/2″ side plate combined with the top plate to create a total height of 6 inches. This height provides a convenient and accessible working surface.

Extended Borehole Pattern: Alpha table side plates feature an extended 5 borehole pattern for added precision and adjustability. This pattern likely allows for various clamping and fixturing options, giving welders flexibility in their work setups.

Nitrided (Heat-Treated) Tabletop: All top and side plates of the Alpha table are constructed from heat-treated steel. The top plates are hardened to a high Rockwell hardness (HRC) of 58-62, while the side plates are slightly softer at 50-55 HRC. They are finished with a nitrite coating with a case depth of .0004-.0008″, which provides durability and resistance to wear and corrosion.

Plate Mounting Detail for Side Plates: The side plates on these tables use a self-locating bushing system. This system likely ensures precise alignment and easy attachment of the side plates to the main table structure, further enhancing the table's accuracy and usability.
